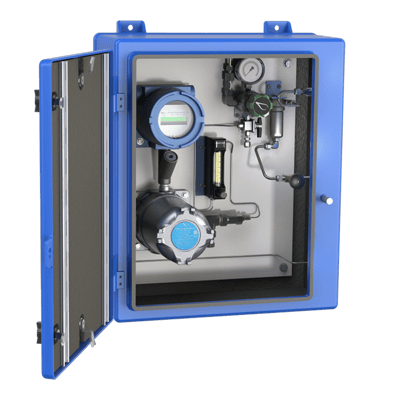

Model M80XP Methane Monitor
Brand: Envent EngineeringThe M80XP Methane monitor has been designed for easy integration into a wide range of gas detection systems where high quality, long-term stability, excellent repeatability, and reliable measurement of Methane gas concentrations are required.
These features can be attributed to a proprietary dual-wavelength, fail-to-safe, infrared (NDIR) sensor technology.
The M80XP provides solutions for measuring and analyzing both industrial and environmental gases.
Features- On-board barometric pressure correction in the range 800 to 1,150 mbar
- Common ranges are from 0 to 5% for sales gas and up to 0 to 30% for inlet CH4 concentration
- Field replaceable IR source
- Extensive temperature compensation
- Low power consumption
- Fast response time (< 10 seconds)
- Natural gas and biogas application specific sensor
Benefits
- Quick delivery on standard systems
- Full service & training
- Custom sample systems designed per your specific application
Specifications
Brand
Operating Power
- 24 VDC Standard
- 12 VDC, 120/240 VAC Optional
Electrical Classification
- Certified for Class I, Division 1, Groups B, C & D
Repeatability
- ±0.1% of reading
Accuracy
- ±2% of range
- ±0.015% of range per mbar
Ambient Temperature
- 0° to 50° C (32° to 122° F). Consult factory for other requirements
Measurement Ranges
- 0 – 100 % CH4 in Biogas
Outputs
- Isolated 4 - 20 mA (concentration only)
- Alarms: 2 solid state drivers 2 Amp, 30 VDC maximum
Digital Interface
- Serial RS-232 (all parameters)
- CH4 is Measured Routinely in Natural Gas for Product Quality and Process Control Purposes
- Natural Gas Plants
- Biogas Plants
- Wastewater Facilities
- Agriculture
- Green Waste
- Landfills
