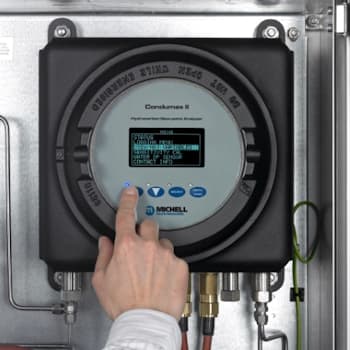

Michell Condumax II Hydrocarbon Dew-Point Analyzer
Brand: Michell InstrumentsThe Condumax II hydrocarbon and water dew-point analyzer provides continuous, automatic measurements of these two critical parameters of natural gas quality.
It uses the ‘Dark Spot’ direct chilled-mirror technique to measure hydrocarbon dew point with high accuracy and long-term reliability. Water dew point measurements are provided by Michell’s Ceramic Metal-Oxide Moisture Sensor.
The Condumax II is housed in a compact explosion-proof enclosure. Both indoor and outdoor sampling systems are available as standard providing comprehensive sample conditioning natural gas at up to 138 barg.
For specific applications and requirements, we offer a custom engineering design service.
Condumax II is suitable for use with natural gas containing up to 20% hydrogen with no further modification required.
Features- Fully automatic on-line analysis
- Objective, highly repeatable measurements
- 0.5° C hydrocarbon dew-point accuracy
- Fundamental chilled mirror principle
- Patented detection technique
- Self-cleaning
- No purge or cooling gas required
- Optional water dew-point analysis
- Modbus RTU
- IECEx, ATEX, UKCA, cQPSus and GOST Ex certifications
Specifications
Brand
Accuracy
- ±0.5° C hydrocarbon dew point
- ±1° C ± (1.8° F) from -59° to 20° C (-74.2° to 68° F) dew point
- ±2° C (3.6° F) from -100° to 60° C (-148° to 154° F) dew point
- Pressure Measurement: ±0.25% FS
Maximum Range
- Hydrocarbon Dew-Point Measurement: Sample Flow Up to Δ -55K measurement depression
Sample Flow
- Hydrocarbon Dew-Point Measurement: 0.03 m3/hr (0.5 Nl/min) - Alarm standard
- Water Dew-Point Measurement: 1 Nl/min (0.06 m3/hr) – alarm standard
Operating Pressure
- Hydrocarbon Dew-Point Measurement: 15 to 100 barg (218 to 1,450 psig)
- Water Dew-Point Measurement: 30 to 138 barg (435 to 2,002 psig)
Resolution
- Pressure Measurement: 0.1 MPa and barg, 1 psig
- Hydrocarbon and water dew point: 0.1° C (0.18° F)
Enclosure
- EExd cast enclosure with removable glass window viewing port
- Internally heated for condensation protection
Sample Gas Connection
- 1/8” NPT(F) for both hydrocarbon and water dewpoint channels
- Sampling system: 6 mm OD or 1/4” OD
Operating Environment
- -20° to 50° C (-4° to 122° F)
- Max 95% RH
Power Supply
- 90-260 VAC 50/60 Hz, 125 W Main Unit
- 300 W c/w indoor sampling system
- 400 W c/w outdoor sampling system
Output
- Modbus RTU, RS485 @ 9600 baud rate
- Two 4-20 mA linear (non-isolated) outputs, user configurable for any combination of dew point or pressure parameters
Approvals
- IECEx, ATEX, UKCA, cQPSus and GOST Ex
- Natural Gas Processing
- Gas Quality Measurements at Custody Transfer
- Transmission Pipeline Monitoring
- Confirmation and Control of Fuel Gas ‘Superheat’ to Turbine Power Plant
