Model 132S Process Gas Chromatograph

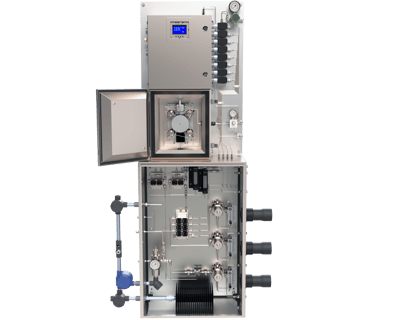

Brand: Envent EngineeringThe Model 132S Process Gas Chromatograph (GC) is a simple approach to energy measurement, created and designed for many different applications.
Envent provides a Process Gas Chromatograph platform that is efficiently manufactured to ensure industry leading delivery, while providing a GC that allows for ease of serviceability.
Features- Ranges from ppm to 100%
- Superior Repeatability
- Windows®-based interface
- Data Logging
- Chart/Chromatogram Archives
- Serial Communications: RS-232, RS-485
- Dual 4-20 mA outputs
- Configurable Modbus
- 10-port or 6-port chromatographic valve
- Excellent sensitivity at low ppm ranges
- Thermistor TCD for ppm to % level components
- Heat Sink Iso-Thermal oven; No Instrument air required
- Multiple Stream capabilities; up to 10 streams possible
- GPA 2145-16 and AGA 8 - ISO 6976 2016E
- Low carrier consumption
Specifications
Brand
Environmental Temperature
- -20° to 60° C (-4° to 140° F) Quoted per application
Dimensions
- 32″ H x 14″ W x 8″ D (no sample system) (81.3 cm H x 35.6 cm W x 20.3 cm D)
Mounting
- Wall mount
- Floor mount
Enclosure
- NEMA 4X
Electrical Classification
- Class I, Division 2, Groups B, C, and D
Power
- 120 VAC 50/60 Hz Standard
- 240 VAC 50/60 Hz Available
Power Consumption
- Start up: 100 watts (does not include sample system electronics)
- Steady State: 60 - 80 watts nominal
Oven
- Airless Heat Sink
GC Valves
- Six-port and ten-port diaphragm chromatograph valves (application dependent)
Stream Valves
- Double Block and Bleed
Carrier Gas
- UHP Helium (99.999%) or UHP Hydrogen (99.999%)
Actuation Gas
- Helium, Hydrogen, Instrument Air (GC Valves/Stream Valves Regulated to 65 psig)
Detector
- Thermal conductivity detector (TCD): Single or Dual TCD capabilities
Input/Output
- Two (2) analog outputs
- Four (4) dry contact relay outputs
- Four (4) digital inputs
- Four (4) solenoid outputs
Communications
- SIM 2251 Modbus Mapping
- User Modbus Mapping
- One (1) RS-232 serial communication port (Modbus capable)
- Two (2) RS-485 serial communication ports (Modbus capable)
- One (1) ethernet communication port RJ-45 (Modbus capable)
Measurement Calculations
- Latest GPA 2145, GPA 2172, AGA 8, and ISO 6976 calculations
- Gas Processing: Plant Inlet, Sales/Outlet, Sour Gas Pipeline Blending
- NGL Fractionation: De-ethanizer, De-propanizer and De-butanizer Tops and Bottoms
- Ethanol and Methanol in NGL
- C5+ Stabilized Condensate
- C6+
- C9+
- Waste and Fuel Gas Analysis
- Biogas and Landfill
- LNGs and LPGs
- Power Generation/ Gas Turbine Control
- Custom Applications
